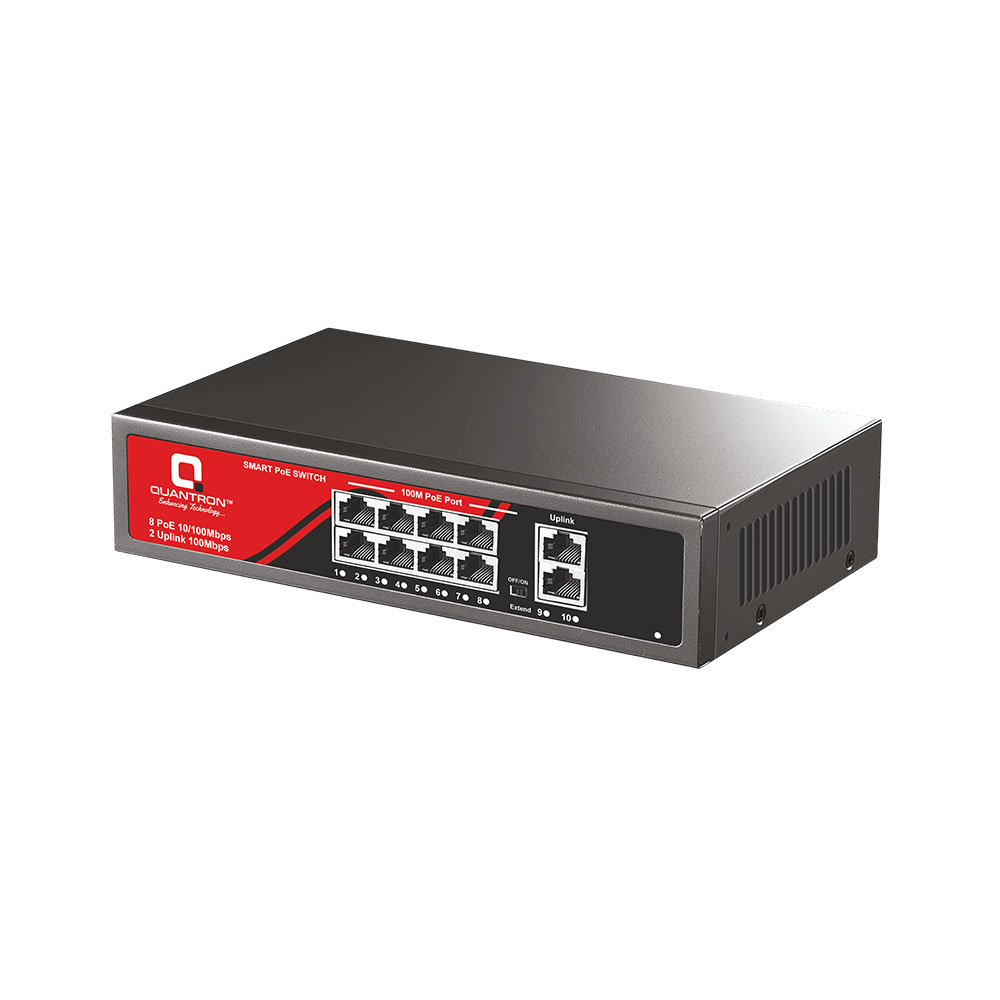

QUANTRON 8 PORT 10/100MBPS POE SWITCH

• IEEE 802.3 at/af compliance
• 60 Watt / 130 Watt PoE Power Budget
• Output upto 15Watt per port to power any PoE device link PTZ Camera
• Option to upgrade power supply to increase or decrease PoE budget (60Watt / 130Watt Power Supplies available)

Note:-

1. VLANE/Extend Mode upto 250mtr. supported
2. The PoE switch must be used to connect with the copper CAT6E cable.
3. Pot splitter used to convert 48v DC to 12v DC.
4. The line connection method based on T56b method.

Features Products

• Ideal for Plug and Play installation of 8 PoE Devices
• Green ethernet
• Fan Less
• 10 Ports (8 FE PoE + 2 FE Uplink) Fast Ethernet PoE Unmanaged Switch
• 2 Fast Ethernet Uplink Ports (UL1, UL2)
• 8 Fast Ethernet Data + Power Ports (DP1-DP8)
• IEEE 802.3 at/af compliance
• Metal Case Desktop Type
